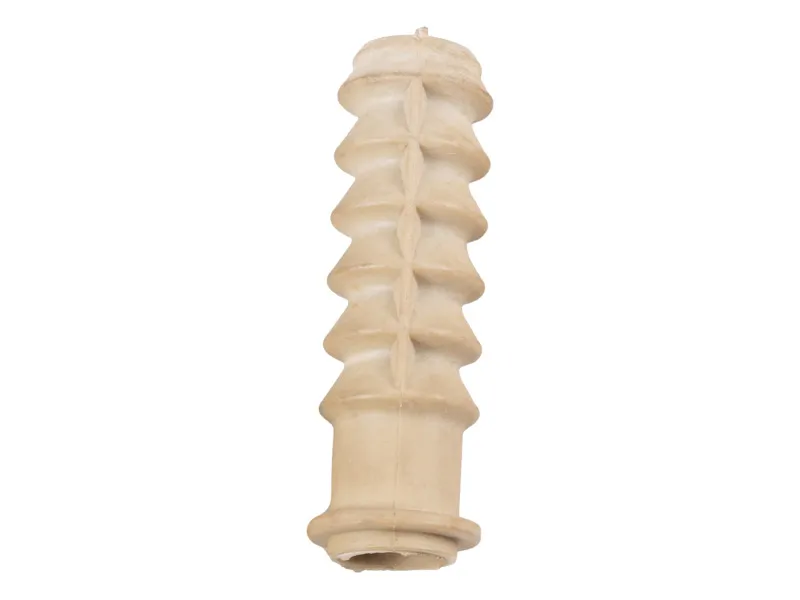

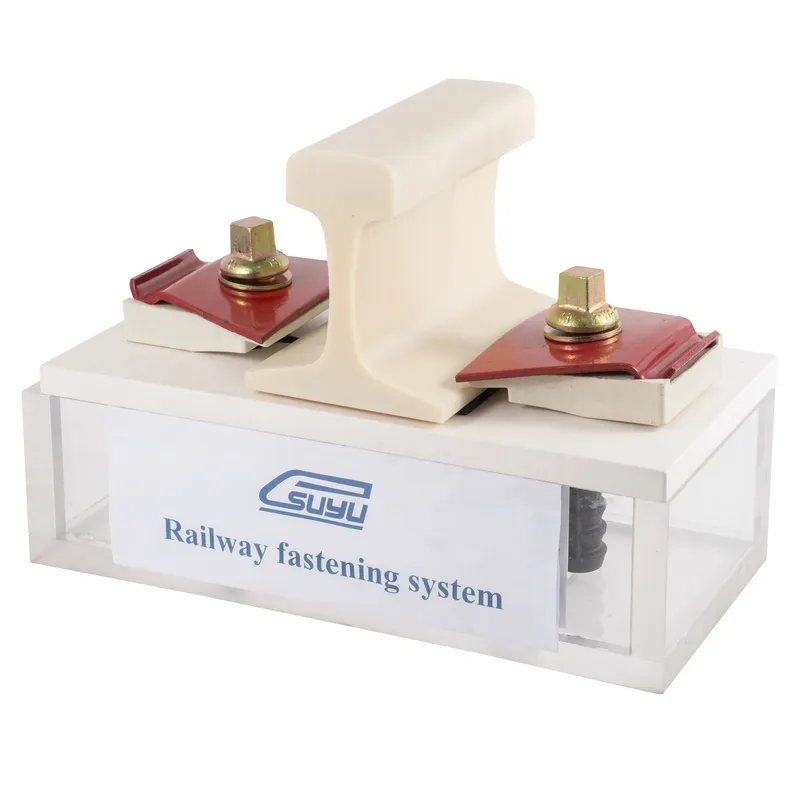

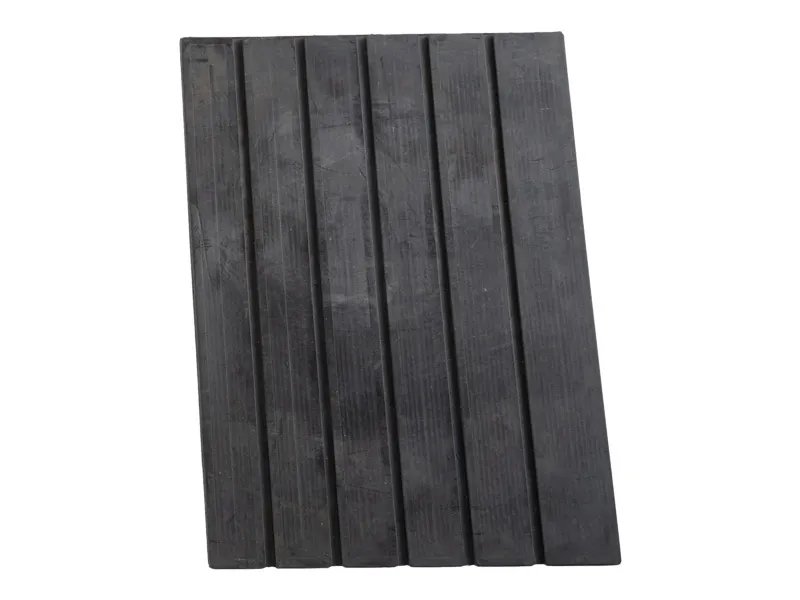

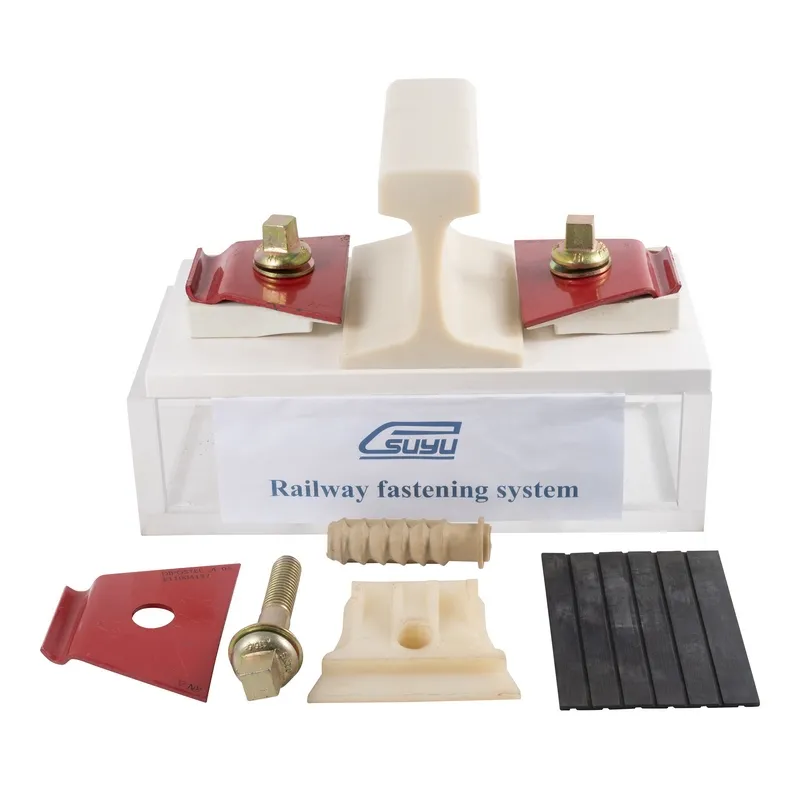

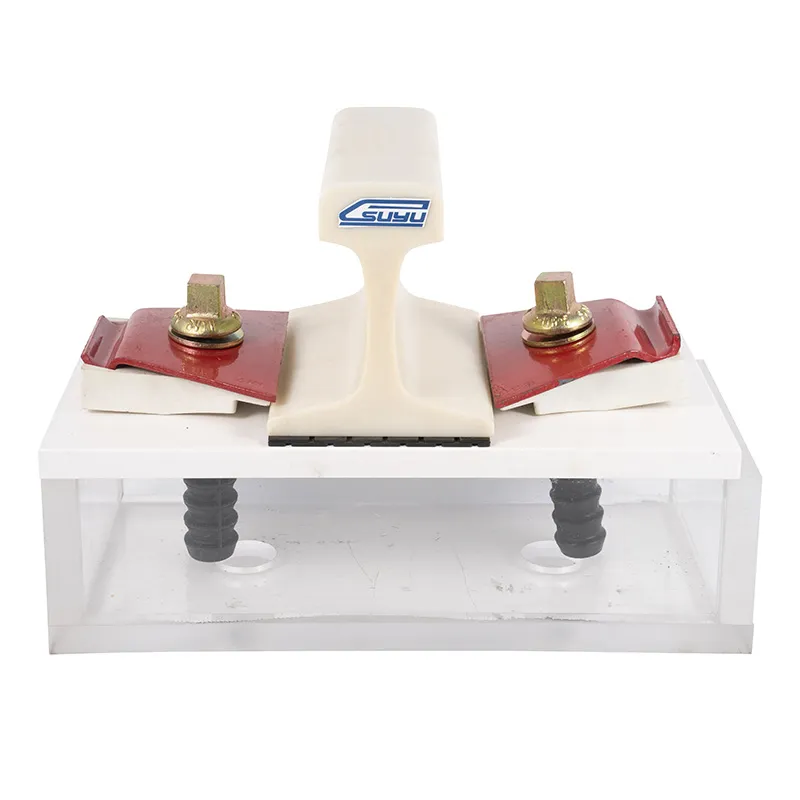

Nabla Clip Rail Fastening System
Technical Parameters
Part name TypeMaterial FinishRemark

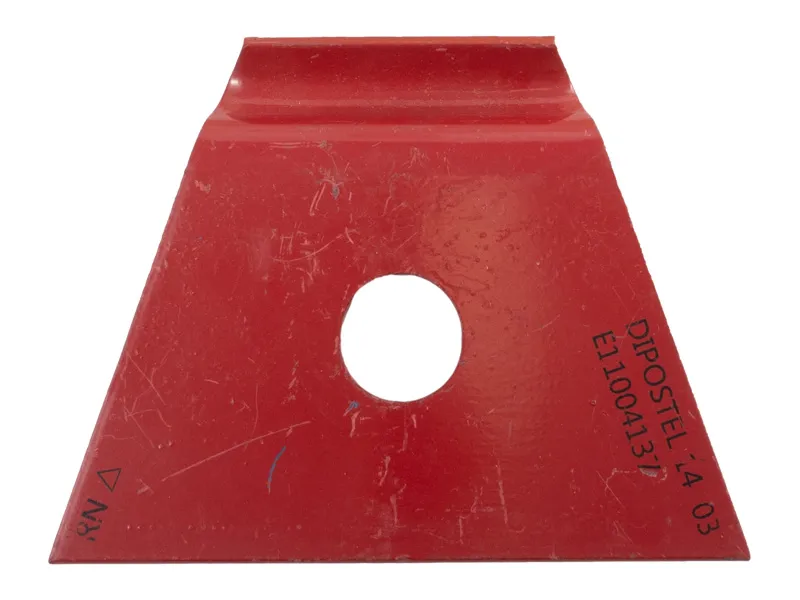

Nabla clipThickness 4mm or 4.5mm60Si2MnA, 60Si2CrAPlain oiled, red color painting, or the other required by customers Hardness: 42-47HRCFatigue
life: 3 millions cycles without breaking
Standard: DIN17221, GB/T1222

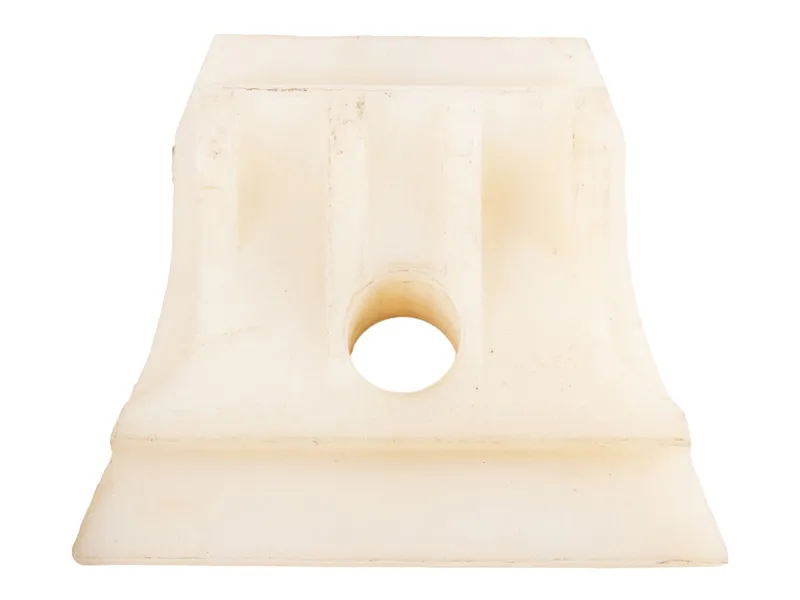

InsulatorUIC54, UIC60, S49 rails Reinforced Nylon 66 (PA66)Black, blue, yellow, green or other colorsDifferent designs are available.

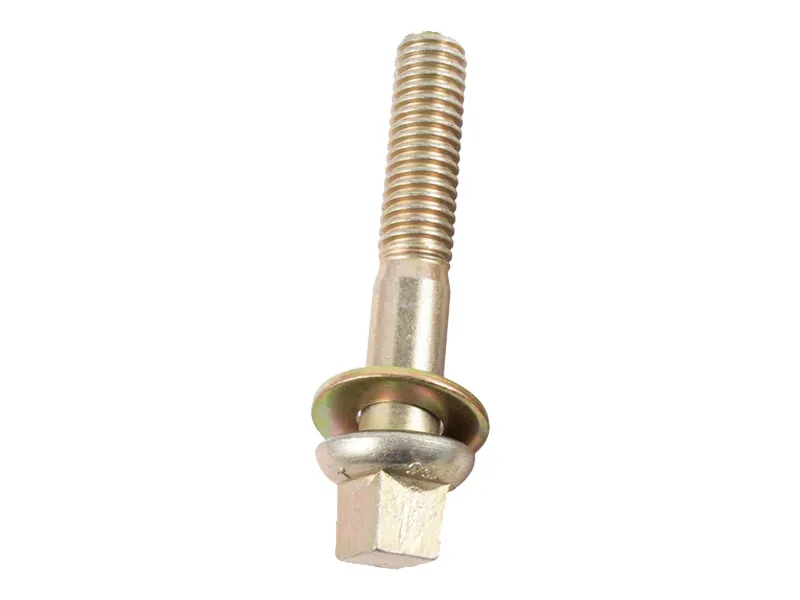

Double end screw spikeUIC54, UIC60, 50kg rail, 60kg railGrade 5.6: 35#Plain oiled, black oxide, galvanized, hot dip galvanizedBending at 30 degree without crack.
Special spring washer18.25×34×78mmML08AlPlain oiled, black oxide, galvanized, hot dip galvanizedFor protecting the thread of the double end screw spike
Hex nutAs orderedGrade 5: 35#Plain oiled, black oxide, galvanized, hot dip galvanizedStandard: DIN985
Plain washerAs orderedQ235Plain oiled, black oxide, galvanized, hot dip galvanizedStandard: DIN125
